CEFT30R custom size wok cooker to Bristol

posted in: Completed project

This wok cooker has just been completed for a noodle bar in Bristol and showcases a number of our optional extras and customisation:

  1. Custom sizing and rear ring deletion (CECUS & CEREM)
  2. Additional water swing spout
  3. Double-jointed spout extension (CEXTT)
  4. Knee-operated spring-loaded taps (CEKOT) to save water. The right hand spout can be operated by one of two knee taps. The rear shower/spray rail for cooling of the cook top remains control by conventional quarter turn lever.
  5. Black cast iron rings (CECIR/XTRAO) equipped with standard fit 12 jet Vortex atmospheric gas burners (BURNV12)
  6. Bespoke rear shelf to fit 9x GN1/6 containers (containers not pictured)

CEFT30R special size wok cooker with knee taps, additional spouts, cast iron rings

Complete kitchen at Bicester Village

posted in: Completed project

We recently designed, supplied and installed a commercial kitchen at Shan Shui restaurant in the prestigious Bicester Village. This serves an Asian fusion menu requiring specialist equipment for wok stir frying, noodle boiling and steaming, in addition to Western target tops, fryers and salamander grill.

This was a challenging project within a retail unit that had limited space and landlord restrictions, but by working closely with the main contractor, interior designer and client, a very capable but still compact kitchen has resulted.

  • Far East did full design of the kitchen, washup, preparation and storage rooms then provided full equipment specifications (including refrigeration, warewashing, bar equipment, hot water boilers); service requirements were provided to the main contractor with Far East making the final connections during installation.
  • The extract canopy utilises Turboswing centrifugal grease filters that integrate UV ozoneless odour control. Mechanical makeup fresh air and Ansul fire suppression is provided. The ventilation engineers were appointed by Far East for their expertise in challenging environments.
  • Far East manufactured catering equipment was used for prime cooking:
    • Far East CEFT wok cooker, specially made to be ultra slim
    • Pasta/noodle boiler and blancher unit was a special made derivative of Far East’s CE wok cookers
    • Dim sum steamer is standard specification Far East CEST
    • Stainless steel fully welded fabrications including the bar, wall shelving, wall sheeting and custom tabling.
  • Far East specified and supplied refrigeration was used throughout the kitchen
  • We provided Calcium Treatment Units to protect the steamer and noodle appliances from limescale
  • Heated grease traps protect the drainage and are easily emptied by means of an observation glass and drain cock, the emptied grease is of suitable quality for recycling. Greasepak chemical dosing systems were also used to protect against FOGs.



Water saving knee taps

posted in: Completed project, News

knee tap water saving wok cooker overview

Scroll down for a demo video. Another pair of CEFT wok cookers for Martin’s Food Equipment (MFE) of Ireland, specified with knee-operated taps. the owner is happy because their water bill has dropped dramatically and the chefs are still happy because it keeps their hands free; these taps are spring loaded with no time delay, requiring constant pressure from the knee to allow water flow, so staff cannot leave them running constantly in to an overflowing container. The shower rail at the rear of the cooker has retained its ordinary lever handle to allow easy filling of the water bath.

Super wide wok cooker

posted in: Completed project

A pair of bespoke Far East CEFT wok cookers installed in Bawtry, South Yorkshire. Custom specification includes:

  • Replacement of rear shelf with twin rails to support woks
  • Double hinged extended water spouts
  • Custom “super wide” size and extra depth, making these some of the largest cookers to ever leave Far East’s factory
  • Made to measure clip-on front trays

Equipped with our latest pre-mix fan-assisted turbo burners and cast iron rings.

Bawtry turbo wok range cooker

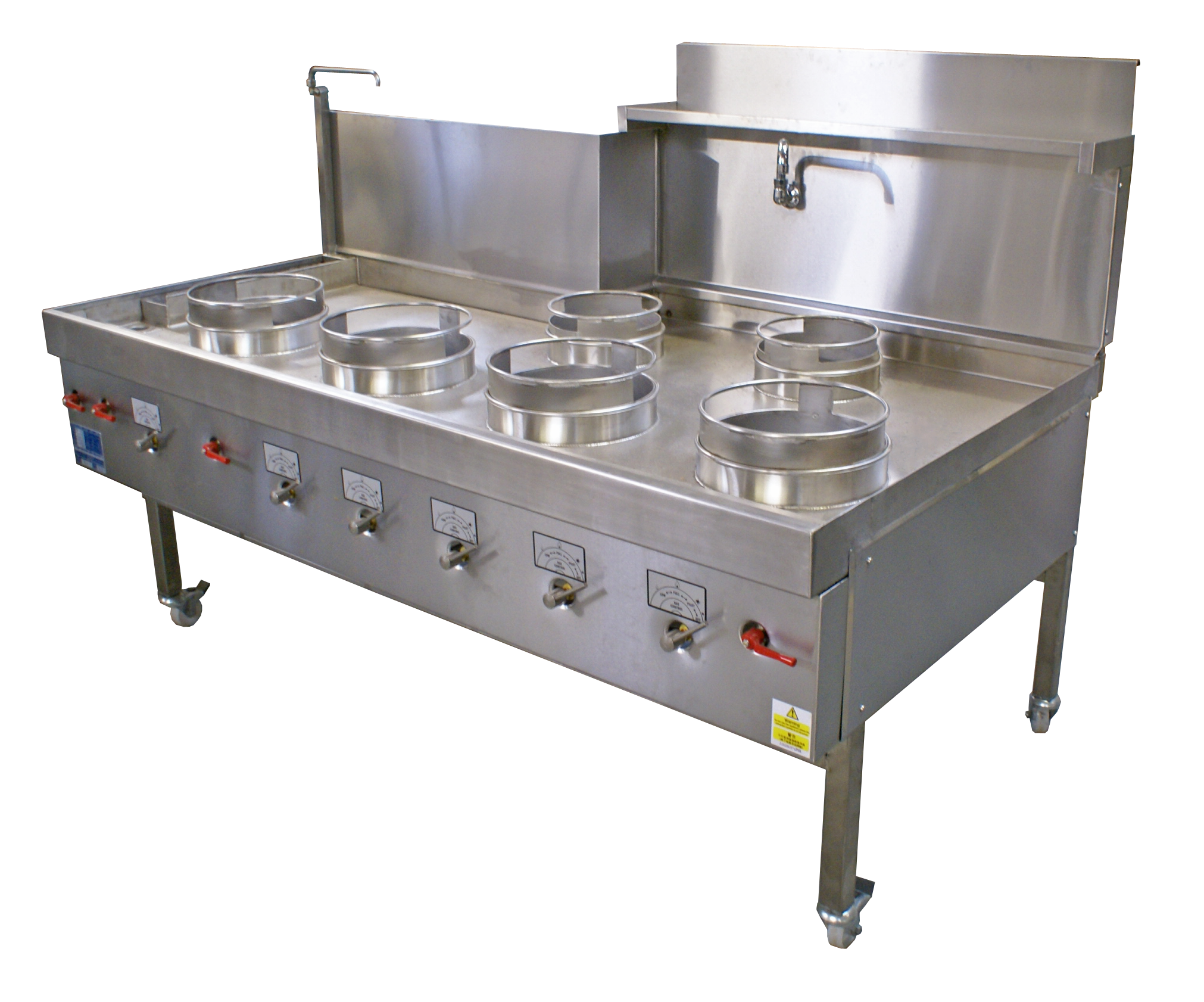

Reduced depth wok cooker

posted in: Completed project

Reduced depth wok cookers (less than 950mm front to back) cannot normally have rear rings, but by spacing the front burners further apart it is possible to retain them without woks and pans hitting each other. This is one of a custom sized pair (CECUS option) heading to London and is just 800mm deep, but by widening the cooker by 350mm the rear rings could be retained. Fully designed and built at Far East’s Derbyshire, UK facility.

Special size reduce depth extra wide cooker Back shelf and rear rings had already been packed for shipping before the photo was taken.

CEST Custom steamer

posted in: Completed project

This is a custom variant of our CEST multifunction steamer, a one-off built to a bespoke specification from Catering Projects Ltd. The header tank assembly has been moved from the front to the left side and replaced by a front basin allowing the rice roll cloths to be soaked. It is shown with the CESSR single cheung fun rice roll attachment.

You’ll soon be able to taste steamed dishes made with this unit at Redfarm in Covent Garden, London.

CEST custom built steamer with side tank and front basin

Turbo burner demonstration video

posted in: Completed project

The only UK built pre-mix turbo wok burner. 30% less gas but same power and quieter too; you could save over £700 gas per burner each year! (see video for details)

Cast iron ring retains and distributes heat to reduce cooking times. Electronic flame detection for improved reliability, with automatic ignition and relighting, simple to start with just a single button. CE certified by BSI. All parts lift out for easy cleaning. Available on the CEFT wok cooker range.

Bespoke custom shelving fabricated

posted in: Completed project

This beautiful bespoke custom catering shelving for Imperial Restaurant, Carnoustie has just been fabricated in welded 304 stainless steel by Far East. It features removable shelves for easy cleaning and is angled to fit neatly in to a corner. Total height 1.8 metres.

Stainless steel bespoke custom catering shelving
